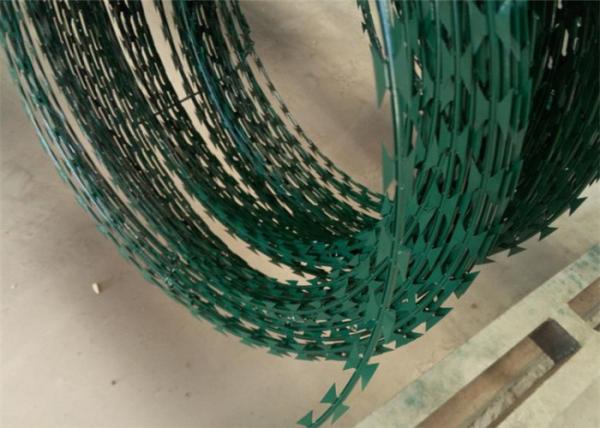

Green Pvc Coated Galvanized Coils Of Barbed Wire For Security Fence

Name: Green Pvc Coated Galvanized Coils Of Barbed Wire For Security Fence
Brand: HBGB
Price: 1 USD

China Green Pvc Coated Galvanized Coils Of Barbed Wire For Security Fence factory

Brand Name : HBGB

Model Number : BTO -10, BTO -12, BTO-18, BTO-22, CBT-60, CBT-65

Certification : ISO 9001

Place of Origin : China

MOQ : 50 rolls

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 2000 rolls per day

Delivery Time : 10 - 20 days

Packaging Details : 1) compression rolls, 5 rolls, 10 rolls, or more rolls as one bundle 2) 1 roll, 3 rolls or 5 rolls in one carton

Product name : razor barbed wire

Material : carbon steel wire

surface treatment : PVC coated

Color : Green or customized

Coil diameter : 450,500,600,700,800,900,960,980 mm

Core wire : 2.5mm

Cover length : customized

Feature : anti climb

Application : Prison fence

Contact Now

Green Red Pvc Coated Galvanized Security Fence Razor Barbed Wire

Razor barbed wire introduction:

Concertina wire or Dannert Wire is a type of barbed wire or razor wire that is formed in large coils which can be expanded like a concertina. In conjunction with plain barbed wire (and/or razor wire/tape) and steel pickets, it is most often used to form military-style wire obstacles such as when used in prison barriers, detention camps or riot control.

Razor barbed wire kinds:

Blade Specification	Blade Forms	Blade Thickness	Core Wire Dia.	Blade Length	Blade Width	Blade Space
BTO-10		0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28		0.5±0.05	2.5	28	15	45±1
BTO-30		0.5±0.05	2.5	30	18	45±1
CBT-60		0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	100±2

Ex. Dia.	No. of Turns	Standard Covering Length	Production Model	Remarks
450mm	33	8M	CBT-65	Single coil
500mm	41	10M	CBT-65	Single coil
700mm	41	10M	CBT-65	Single coil
960mm	53	13M	CBT-65	Single coil
500mm	102	16M	BTO-12.18.22	Cross type
600mm	86	14M	BTO-12.18.22	Cross type
700mm	72	12M	BTO-12.18.22	Cross type
800mm	64	10M	BTO-12.18.22	Cross type
960mm	52	9M	BTO-12.18.22	Cross type

Application

It can fix on the wire mesh fence that adds high security.

Razor barbed wire applications:

Razor wire mesh fence has been widely used in many countries ,industrial and minning enterprises , garden apartments, border posts ,the millary field , prisons, detention centers ,government buildings and other national security facilities.

Green Pvc Coated Galvanized Coils Of Barbed Wire For Security Fence

Razor barbed wire specifications:

Green Pvc Coated Galvanized Coils Of Barbed Wire For Security Fence
