4mm 8×10 Temporary Construction Fence Panel 12ft

Name: 4mm 810 Temporary Construction Fence Panel 12ft
Brand: HBGB
Price: 1 USD

China 4mm 8×10 Temporary Construction Fence Panel 12ft factory

Brand Name : HBGB

Model Number : GB-009

Certification : ISO 9001

Place of Origin : China

MOQ : 100sets

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 sets per day

Delivery Time : 15-25 days

Packaging Details : bulk or in bundle

Product name : Temporary Construction Fence Panel

Type : chain link wire mesh fence

Raw material : iron

Color : silver

Finishing : Hot dipped galvanized

Wire diameter : 2.0mm-4.0mm

Mesh size : 50*50mm, 60*60mm,

Panel size : 6'*10', 6'*12', 6'*14', 8'*10'

Frame : 32mm, 38mm, 42mm, 48mm O.D

Features : Easily Assembled, Sustainable, ECO FRIENDLY, Anti-corrosion

Contact Now

Hot Dipped Galvanized Chain Link Temporary Construction Fence Panel

Chain link Temporary Construction Fence Panel Brief Description:

Temporary fence chain link fence, also known as mobile fence, temporary isolation fence, mobile security fence, mobile fence. The main use of removable components will be the main guardrail with the base or guard column for standard connection, such as the specific needs of the time can be easily removed, for mobile installation.They are popular in Australia, American, England, Africa market.

Pictures of fence in details:

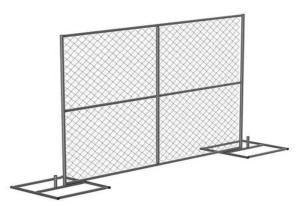

4mm 8×10 Temporary Construction Fence Panel 12ft

Specifications of Chain link Temporary Construction Fence Panel:

Chain Link Panel Temporary Fence Specification
Fence panel height	4ft, 6ft, 8ft
Fence panel width/length	10ft, 12ft, 14ft, etc
Wire diameter	2.7mm (11.5 gauge), 2.5mm, 3mm
Chain link mesh size	57x57mm (2-1/4"), 50x50mm, 60x60mm, etc.
Frame tube O.D	33.4mm (1-3/8"), 32mm, or 42mm (1-5/8") with 0.065" wall thickness
Vertical/Cross tube O.D	25mm or 32mm with 1.6mm (0.065") wall thickness
Fence base/stand	610x590mm (24'' x 23''), 762x460mm (30'' x 18''), etc
Accessory	Clamp, extra brace (diagonal brace)
Material	Hot dipped galvanized steel
Surface treatment	All joints are welded and sprayed with a galvanized paint to cover any exposed metal

Main feature of Chain link Temporary Construction Fence Panel:

1) Simple structure in linear type ,easy in installation and maintenance.
2) Renewable resource, could be used for several years.
3) All welding slag are cleared to insure fence smooth surface.
4) Whole panel (welded mesh panel and frame tube) will be silver spray painted after welding to protect all welding spots.
5) Customized fence shape or specification is also available.

Application:

Some of the most common uses for chain link panels include high-rise commercial construction sites, home developments, highway projects, store front renovations, and for any application where the installation of a post-driven fence is not possible or desired.
